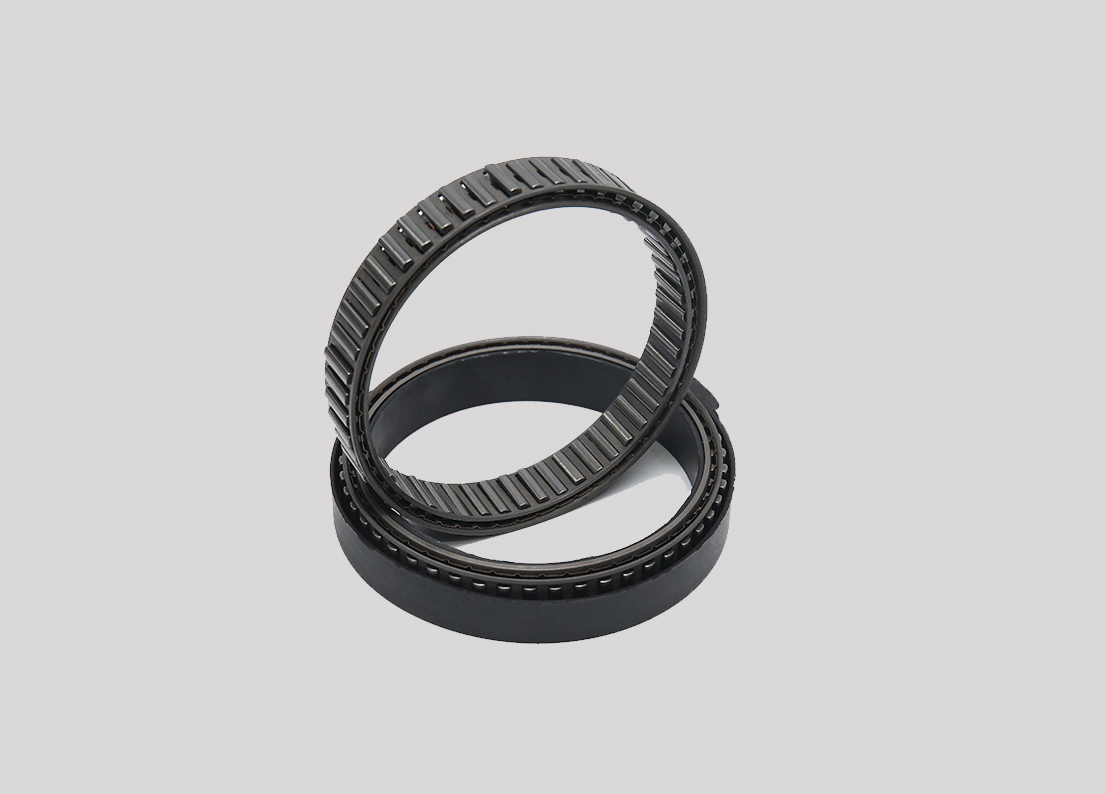

特性及應用： DC 型式為楔塊保持器單向離合器但不含內環與外環。 ·此型號必須配合客戶自行設計的 內環及外環，軸承支撐軸向及徑向的負載，與潤滑油脂及油封。 ·不規則作動子接觸面之空間 公差必需在范圍內，外環與內環之接觸面的寬度不可小于尺寸“e”，接觸面不可有任何溝槽以* 功能正常。 ·原廠可提供標準型式的內環與外環。 ·若自行制造經硬化處理過的鋼制軸 心及工件機壁直接套入。研磨加工處理過的接觸面硬度為HRC 60~62硬化深度須大于0.6mm。 ·接 觸面之內部硬度為 HRC 35~45，接觸面之表面光滑度必需小于 22 CLA，接觸面可接受之*大歪斜度 為 25mm 寬度為 0.007 之歪斜度。

 Characteristics and application: DC type for wedge retainer one-way clutch but without the inner ring and outer ring.Must cooperate with customer design, this type of inner ring and outer ring, axial and radial load bearing support, and lubricating grease and oil seal.Exposure to space, irregular actuation son tolerances must be within the range, not less than the width of the contact surface of outer ring and inner ring size "e", the contact surface shall not have any groove to ensure that the function is normal.Factory can provide the standard type of inner ring and outer ring.If, to manufacture its own treated by hardening steel axis and the machine set directly into the wall.Grinding process of contact surface hardness of HRC 60 ~ 62 hardening depth must be greater than 0.6 mm., contact area of the internal for 35 ~ 45 HRC hardness, surface smoothness of the contact surface must less than 22 CLA, contact area of acceptable biggest skew is 25 mm width is 0.007 the skew.
