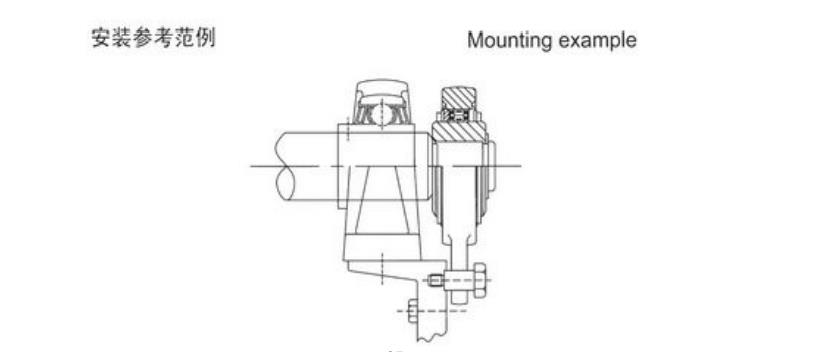

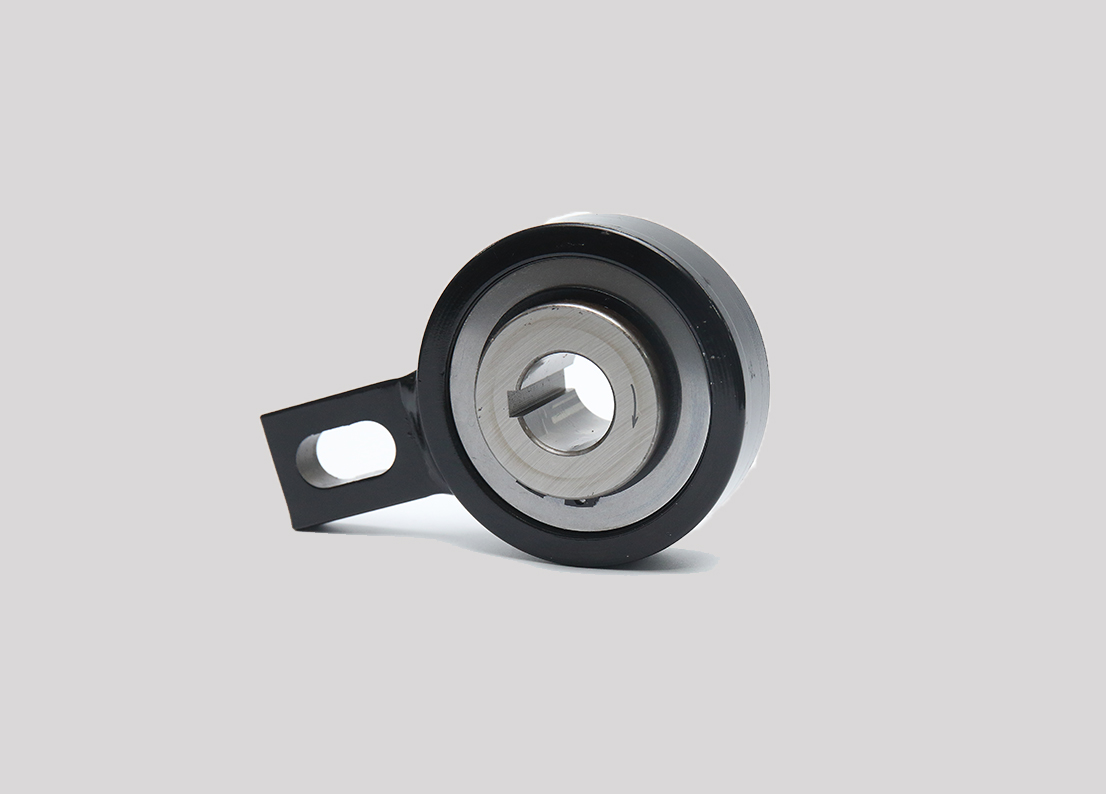

特征及應用: RSBW 為楔塊式單向離合器,內含油封及軸承支撐,使用平面(滑動)軸承支撐定位。適用于低運 轉速度,油封使用有框包裹保護之 O 型環。 出廠時已加注潤滑脂,可立刻安裝與垂直或水平方向之位置。 主要應用于防止逆轉,此型號特點為在*小的空間內提供較大扭矩,此型設計可適用于嚴苛環境需 求,例如高度潮濕環境,或水濺灑之區域。 扭力臂之槽溝用螺絲固定與機壁上,以提供力量防止逆轉,螺絲與扭力臂槽之間隙為溝槽之 1%寬度, 扭力臂與軸承安裝后*可有內應力存在,(安裝時螺絲不可將扭力臂軸向的鎖住,徑向亦留有間 隙,即不會有彎曲應力施加于軸承及扭力臂上面。)
Characteristic and application: RSBW is wedge type one-way clutch, containing oil seal and bearing support, using plane (slide) bearing support localization.Suitable for low speed, the oil seal use protective box package of o-rings.Factory has been filling grease, can immediately installation and vertical or horizontal position.Mainly used to prevent the reverse, this model features in the smallest space provide bigger torque, this design can be used in harsh environment requirements, highly humid environment, for example, or water area of spill.Torque arm's groove with screws and machine, to provide power to prevent reverse, screw and torsion arm slot of 1% of the clearance of the groove width, torque arm and the internal stress bearing installed never exist, (when installation screws may not be axial torque arm lock, radial gaps, also that there will be no bending stress on bearing and the torque arm.)
